PV Solar Connectors for Solar Panel Extension Cable Wire
PV Solar Connectors for Solar Panel Extension Cable Wire
SKU:SOC-PV-01
Couldn't load pickup availability
Solar Connectors are the industry standard for connecting photovoltaic panels for safe operation. The connectors are specially designed with a watertight seal (if installed with the correct cable) and coated with a UV resistant coating. Our solar connectors feature a 'male' and 'female' end for straightforward installation.

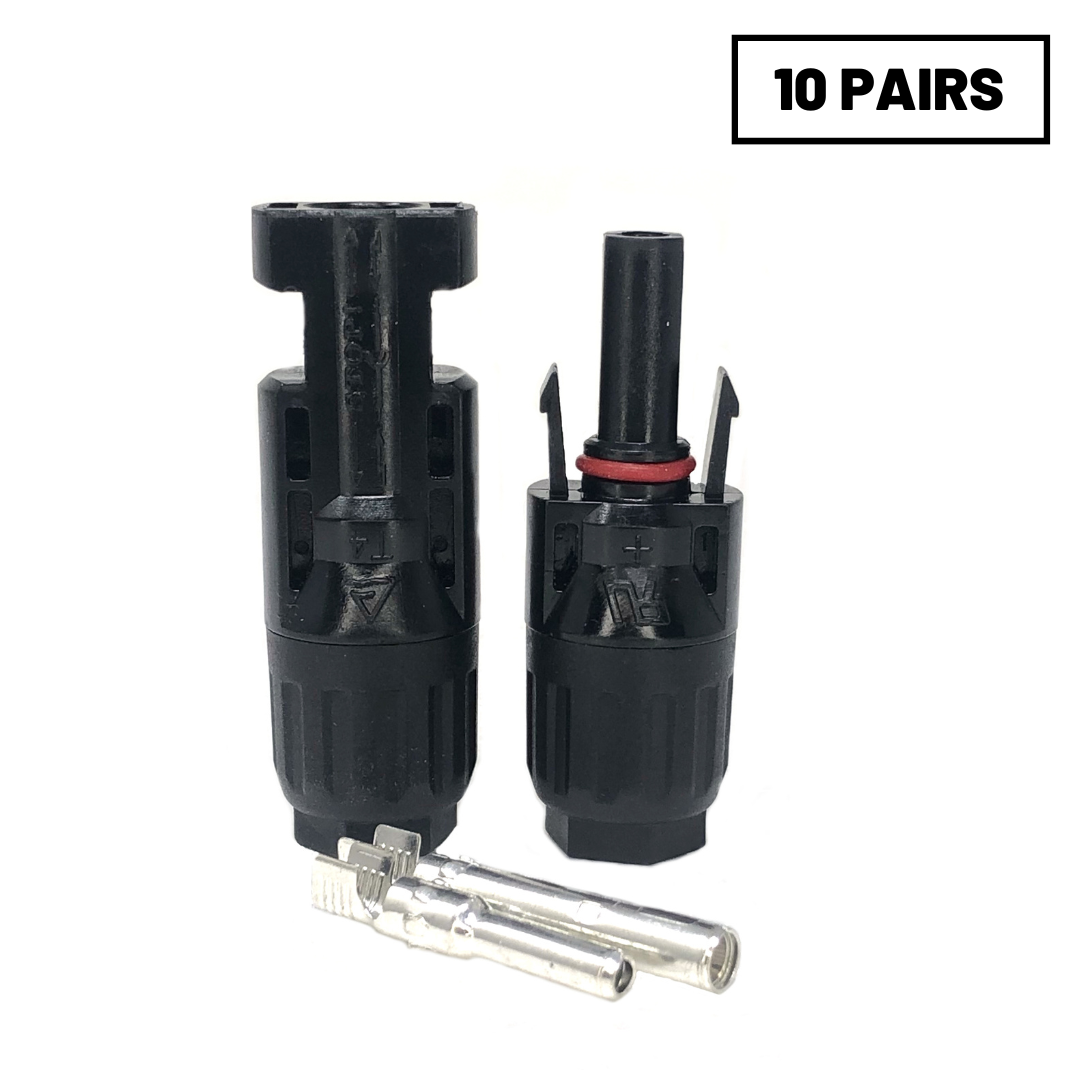

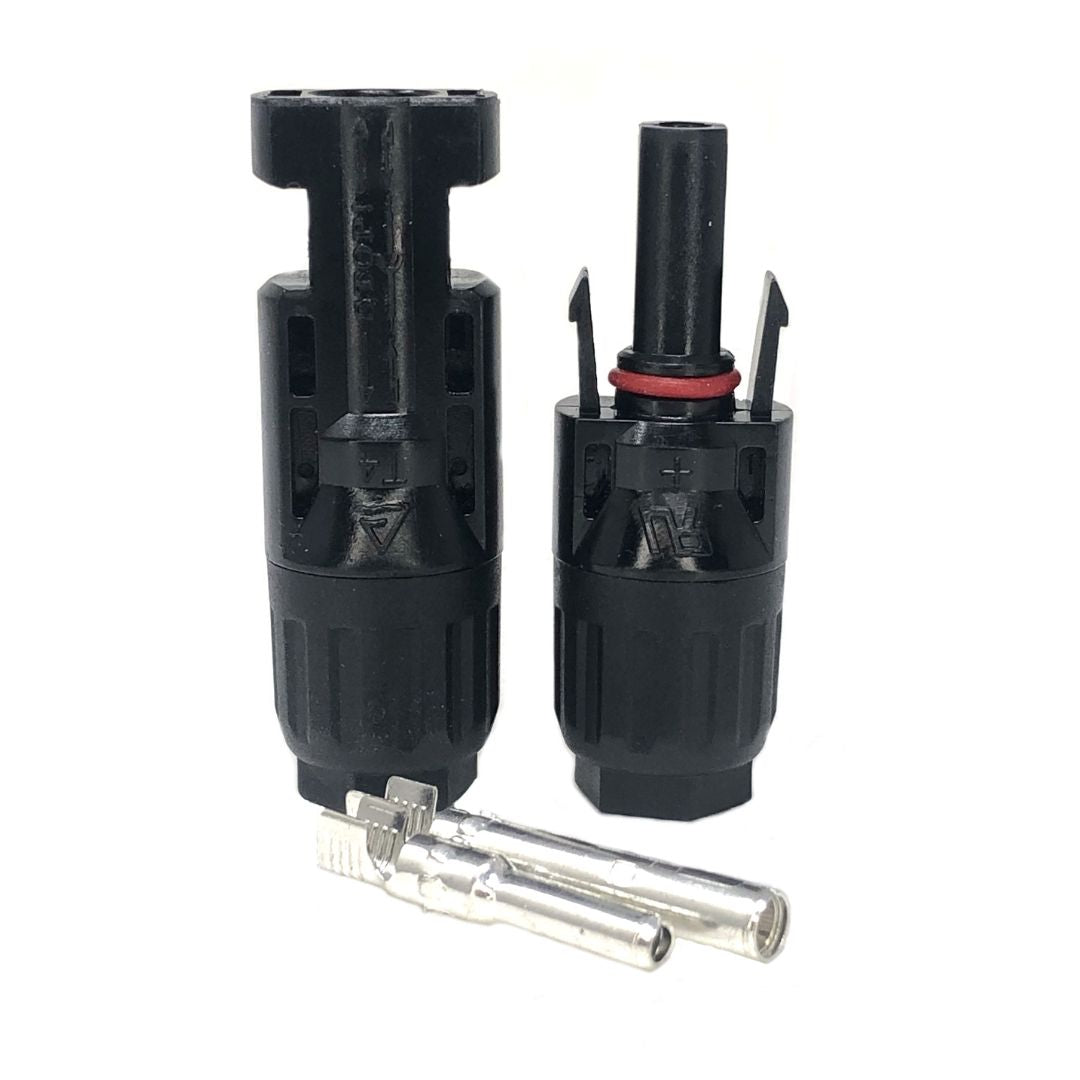

- Includes 1 piece male solar connector and 1 piece female solar connector
- Compatible with all solar connectors
- Designed for outdoor use on solar panel systems
- Waterproof and dustproof
Technical Specifications
| Rated Current | 30A |
| Maximum Voltage | 1000 VDC (600 VDC UL) |
| Protection Class | Class II |
| Contact Resistance | < 0.5 milli ohms |
| Temperature Range | - 40?C to +90?C |
| Protection Degree | IP67 IP2X (unmated) |
| Wire Size Range | 10, 12, and 14 AWG (6 mm2, 4 mm2, and 2.5 mm2) |
| Insulation Material | PA/PC |
| Flame Class | UL94-VO, UL94-VA |
| Contact Material | Silver Plated Copper |
| Certifications | TUV |
- GEGuy E.Verified BuyerRated 5 out of 5 stars2 weeks agoPerfect fit on time
These connectors work great, and arrived on time.
Thank you,
Guy
- GTGary T.Verified BuyerRated 5 out of 5 stars1 year agoSolar connectors
Nice way to make connections. Far cry from my first solar panel installation over 30 years ago. Back then you just had to wing it.
- SVShaun V.Verified BuyerRated 5 out of 5 stars1 year agoWindy Nation is the best
Easy to deal with and they always have my solar supplies in-stock!
- GTgeorge t.Verified BuyerRated 5 out of 5 stars1 year agoGeorge the Great
Good product but i had to soldier the wire to the metal connector to avoid intermittent connection. Crimping was not enough. The length of the metal material to crimp was small and the metal was thin which didn't allow a strong crimping action to hold well enough. This may have been due to using 12 awg wire instead of 10 awg wire that i originally planned to use.
- LFLane F. M.Verified BuyerRated 5 out of 5 stars1 year agoSolar connectors
Outstanding products, fairly priced and exceptional kind customer service.
