Solar PV Branch Connector Cable Splitter Coupler for Solar Panel
Solar PV Branch Connector Cable Splitter Coupler for Solar Panel
SKU:SOC-PVBR-01
Couldn't load pickup availability

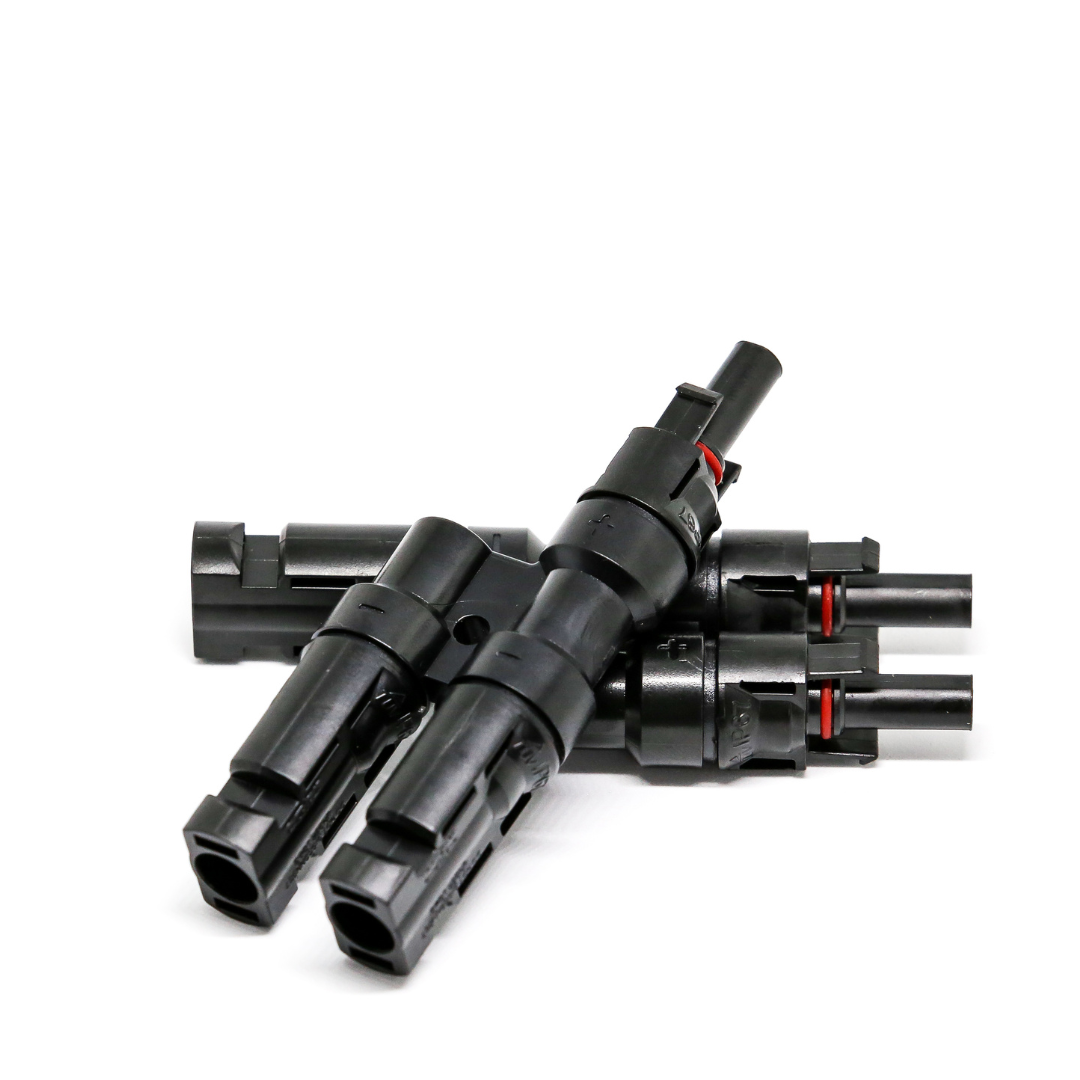

Branch Connectors provide a quick, easy, and reliable way to wire two or more solar panels together. Multiple sets of Branch Connectors can be used to wire an unlimited number of solar panels together.

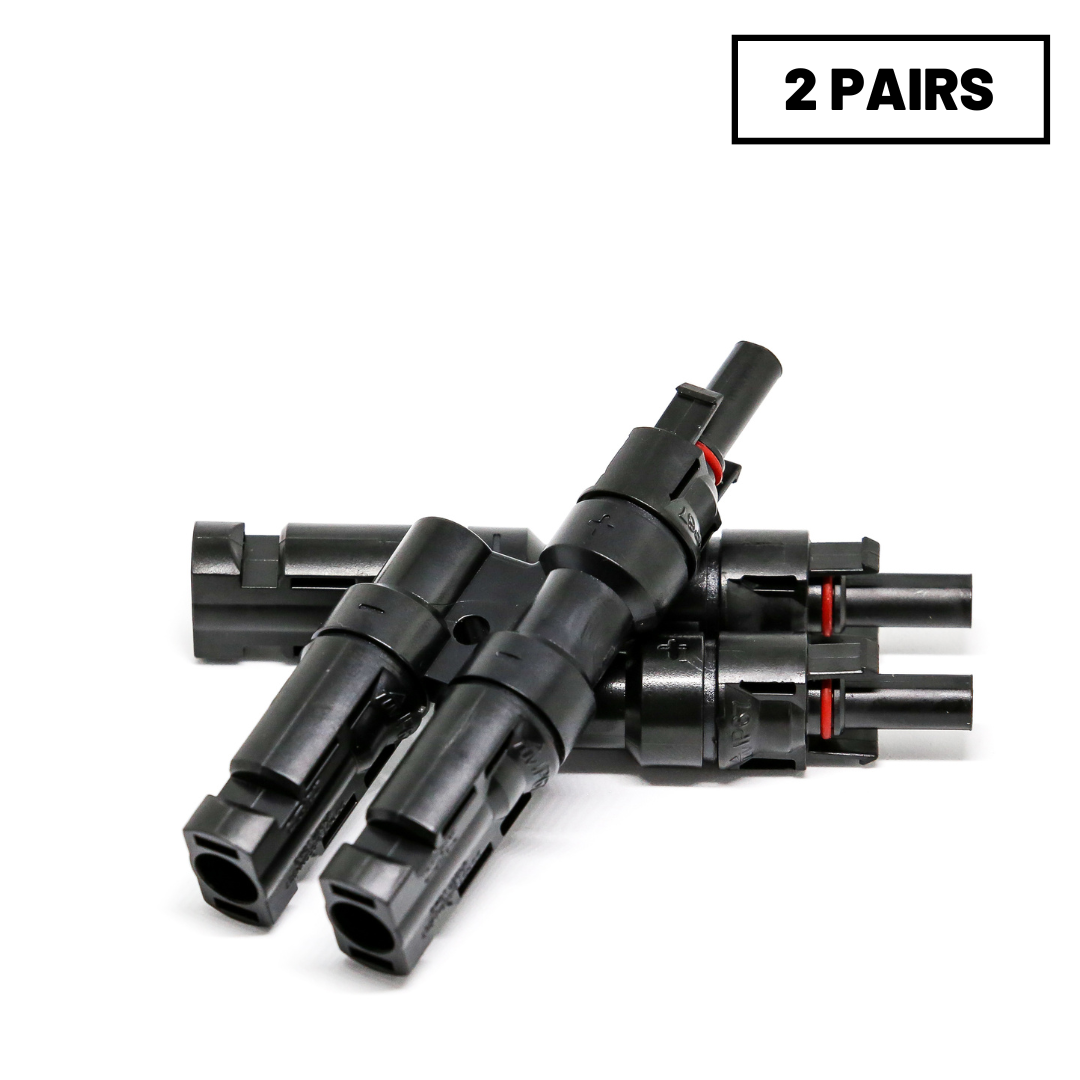

- Includes 1 male branch connector and 1 female branch connector (per pair)
- Compatible with all solar connectors
- Designed for outdoor use on solar panel systems
- Waterproof and dustproof
| Rated Current | 30A |
| Maximum Voltage | 1000 VDC |
| Protection Class | Class II |
| Contact Resistance | < 0.5 milli ohms |
| Temperature Range | -40 C to +90 C |
| Protection Degree | IP67 IP2X (unmated) |
| Wire size range | 10, 12, 14 AWG (6 mm2, 4 mm2, 2.5 mm2) |
| Insulation Material | PA/PC |
| Flame Class | UL94-VO, UL94-VA |
| Contact Material | Silver Plated Copper |
| Certifications | TUV |
- MSMark S.Verified BuyerRated 3 out of 5 stars1 week agoDifficult mating
There were two problems with mating these with my other MC4 connectors. I had to file down the flats on all three male ends about 0.005" in order to get them to mate. In addition, two of the three o-rings on the male ends were just a little too big to go into the female mates all the way. This was obviously frustrating, but I finally got them to work.
- HNHerbert N.Verified BuyerRated 5 out of 5 stars1 month agoSplitters
Its been to hot to hook them up but they look solid. Also purchase 12 gauge cable wire and it appears to be heavier then other crap I received somewhere else.
- DDebraRated 5 out of 5 stars1 month ago5 Stars
As described & worked well.
- MVMike V.Verified BuyerRated 5 out of 5 stars9 months agoPerfect way to parallel wire two solar panels.
I have a rooftop solar panel and a portable panel I need to wire in parallel in my camping trailer. These connectors make it easy and secure.
- JMjerry m.Verified BuyerRated 5 out of 5 stars10 months agoBest connectors.
Years ago bought unbranded cheepies online. Returned them because they were all broken. Windynation connectors never arrive broken or unusable. They have great quality control.
